MultiTester
Part# MT27
Still in development

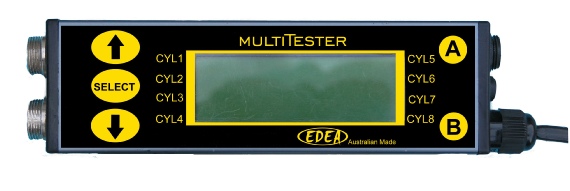

The EDEA Multi Tester is a factory programmable diagnostic tool available with optional attachments to suit the needs of individual technicians.
Tests able to be performed by the EDEA Multi-Test are:
On car measurement of fuel pump flow, pressure and voltage. With the ability to log significant events.
Cylinder compression test requiring the removal of only one spark plug to test all other cylinders.
Beneficial for testing engines with restricted access to spark plugs.
Ability to measure strength of exhaust pulse to isolate problematic cylinders. Use of timing sensor enables specific cylinders to be pinpointed.
Facilitates in identifying symptoms caused by, injection, ignition or mechanical issues and determine which cylinder has the fault.
Diagnose current signal of ignition coils, locate faulty coils.
Ignition KV testing with readings for min, max and average
KV (kilovolts) and burn times.
Injector pulse width readings for min, max and average.
Identify combustion gas leakage into cooling systems.
O2 sensor test.
Shock absorber testing
Can be custom programed to customers needs or specific sensors
Extra sensors and tests will be made available.
